Isolators & Circulators - F Series
Description

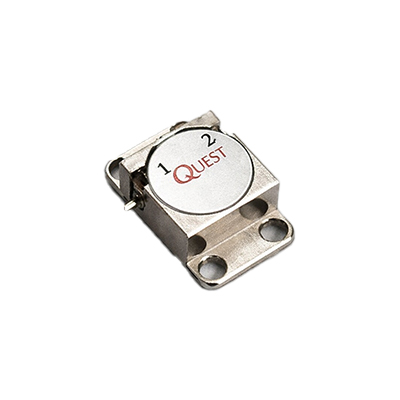

The F Series is an ultra-compact flange-mount drop-in isolator operating from 7.8 GHz to 26 GHz.
It combines broadband performance, small form factor (0.25 × 0.50 × 0.17 in.), and 5 W / 1 W power handling,
making it ideal for millimeter-wave systems, radar sensors, and communication links.
Key Specs
- Frequency Range 3.6 - 26.0 GHz
- Isolation 18 - 20 dB
- Insertion Loss 0.4 - 0.6 dB
- VSWR 1.25 - 1.35 : 1
- Power 5 W (Forward) / 1 W (Reverse)
- Mount Type Flange-mount, drop-in style
Product Information
- Applications : Millimeter-wave radar, Communication modules, Defense and Aerospace Systems
- Model Structure : The model is for isolators; change the "T" to a "C" for circulators.
